1A4C-3100

The 1A4C-3100 trailer design optimizes load conditions, tongue weight and axle weight for a safer transport. This trailer is very similar to the 1A4B-2100 model, but with an extra 60-gallon fresh oil tank for operators that require two kinds of fresh oil on jobsites.

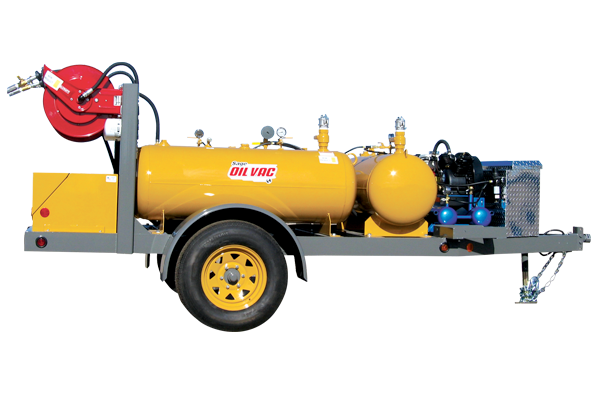

Sage Oil Vac 1A4C-3 Lube Trailer

Tanks

  • (1) 80 gallon ( 303 l )ASME tank used oil
  • (1) 80 gallon (303 l ) ASME tank fresh oil & fluid
  • (1) 60 Gallon ( 227 l ) ASME tank fresh oil & fluid

Power

  • 12.5 CFM vacuum/compressor driven by 5.5 hp Honda gas engine – 125 psi max

Hoses & Reels

  • (1) 3/4 in x 25 ft (1.905 cm x 7.6 m) used oil hose on spring retractable reel
  • (2) 3/4 in x 25 ft (1.905 cm x 7.6 m) fresh oil hose on spring retractable reel
  • 3/8 in x 25 ft (0.9525 cm x 7.6 m) air hose on spring retractable reel (priced separately)
  • 1 in x 20 ft (2.54 cm x 6.1 m) used oil offload hose (priced separately)

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
  • Patented used Filter Receptacle
  • Patented Filter Stinger (priced separately)
  • 25 micron filters on all new oil reels
  • Y-Strainer on all new coolant reels

Hose Ends, Meters, Handles

  • Used oil hose — 3/4 in (1.905 cm) cam and groove fitting
  • Fresh fluid hoses — 1⁄2 in (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately, specify quantity and type)

Frame

  • Trailer mounted
  • Single 3500 lb rubber torsion axle
  • (2) 225/75R15 tires
  • Universal 2 5/16 in hitch
  • Drop leg jack
  • Tongue-mounted toolbox
  •  DOT-approved light package
  • 7 plug electric adapter

Dimension & Weights

  • Width: 71.65 in (1.82 m)
  • Length: 173.2 in (4.40m)
  • Empty weight: 1820 lb (826 kg)
  • Normal max operating weight: 2842 lb (1289 kg)
