1C5D-4108

The 1C5D-4108 trailer is the tandem-axle version of the 1B5D-4101 model. This four-tank trailer features 80-gallon, vertical tanks in a very compact arrangement for use on rough jobsites and unpaved roads.

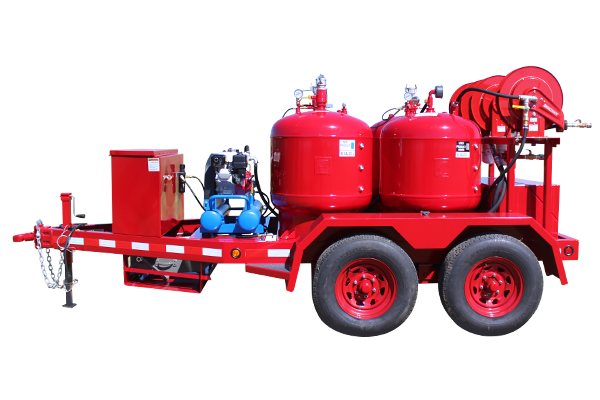

Sage Oil Vac 1C5D-4 Lube Trailer

Tanks

  • (1) 80 gallon ( 303 l )ASME tank used oil
  • (3) 80 gallon (303 l ) ASME tank fresh oil & fluid

Power

  • 12.5 CFM vacuum/compressor driven by 5.5 hp Honda gas engine – 125 psi max

Hoses & Reels

  • (1) 3/4 in x 25 ft (1.905 cm x 7.6 m) used oil hose on spring retractable reel
  • (3) 3/4 in x 25 ft (1.905 cm x 7.6 m) fresh oil hose on spring retractable reel

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
  • Patented used Filter Receptacle
  • Patented Filter Stinger (priced separately)
  • 25 micron filters on all new oil reels

Hose Ends, Meters, Handles

  • Used oil hose — 3/4 in (1.905 cm) cam and groove fitting
  • Fresh fluid hoses — 1⁄2 in (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately, specify quantity and type)

Frame

  • Trailer mounted
  • Double 5200 lb leaf spring axle with electric brakes
  • (2) 225/75R15 tires
  • Universal 2 in hitch
  • Drop leg jack
  • Tongue-mounted toolbox (24 in W x 16 in D x 43 in H)
  • Dot-approved light package
  • 7 plug electric adapter

Dimensions & Weights

  • Width: 86.125 in (2.12 m)
  • Length: 169.875 in (4.27 m)
  • Empty weight: 3235 lb (1467 kg)
  • Normal max operating weight: 5605 lb (2542 kg)
