1C5G-5100

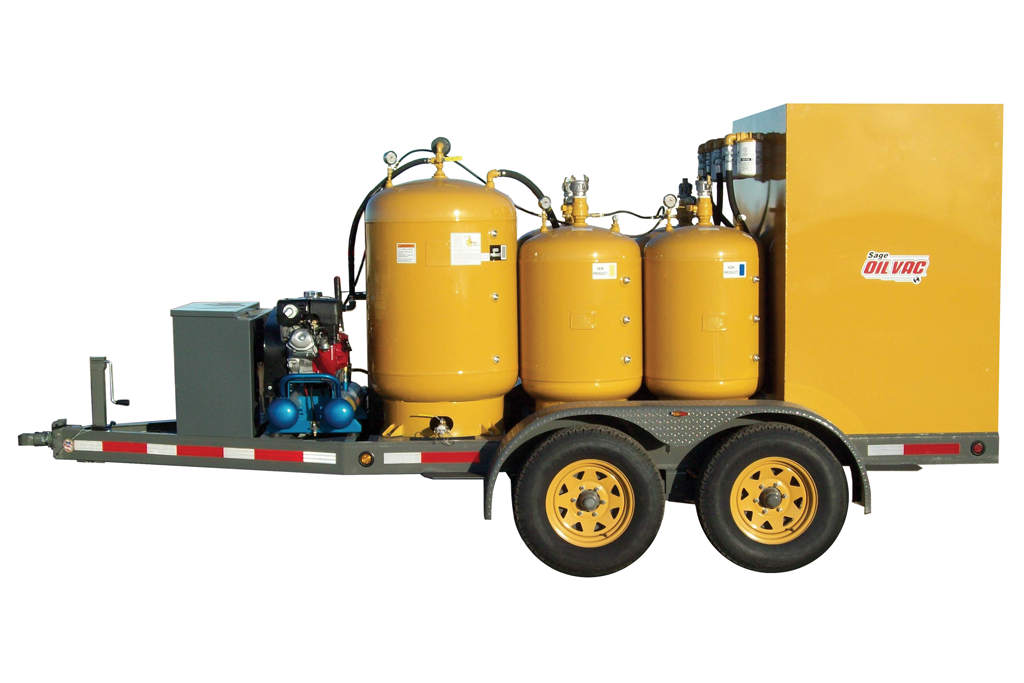

Sage Oil Vac made the 1C5G-5100 jobsite trailer extremely versatile with its towable capabilities. This unit features three fresh product tanks, one fresh coolant tank, Reel Cabinet and valuable storage space.

TANKS

  • (1) 120 gallon (454 l) ASME tank used oil
  • (3) 60 gallon (227 l) ASME tank Fresh oil & Fluid
  • (1) 60 gallon (227 l) ASME tank Fresh Coolant

POWER

  • 22 CFM vacuum/compressor driven by 8.0 hp electric start Honda gas engine – 125 psi max

HOSES & REELS

  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) used oil hose on spring retractable reel
  • (3) 3/4 in x 50 ft (1.905 cm x 15.2 m) fresh oil hose on spring retractable reel
  • (1) 5/8 in x 50 ft (1.5875 cm x 15.2 m) fresh coolant on spring retractable reel

SAGE OIL VAC ATTRIBUTES

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately – specify quantity and length)
  • Patented Used Filter Receptacle
  • Patented Filter Stinger (Priced Separately)
  • 25 micron filters on all new oil reels

HOSE ENDS, METERS, HANDLES

  • Used oil hose – 1 in (2.54 cm) cam and groove fitting
  • Fresh fluid hoses – 1/2 in (1.27 cm) flush face quick disconnects, adaptable to meters (Priced separately, specify quantity and type)

FRAME

  • Trailer mounted
  • Tandem 5200 lb leaf spring axle with electric brakes
  • (4) 225/75R15 tires
  • Universal 2 5/16 in hitch
  • Drop leg jack
  • Tongue-mounted toolbox (24 in W x 16 in D x 43 in H)
  • Additional passenger side storage box (30 in W x 24 in D x 48 in H)
  • DOT-approved light package
  • 7 plug electric adapter
  • Rear reel cabinet W/ dust proof lockable roll-up shutter style door

DIMENSIONS & WEIGHTS

  • Width: 86 in (2.18 m)
  • Length: 208.25 in (5.28 m)
  • Empty Weight: 4300 lb (1950 kg)
  • Normal max operating weight: 6052 lb (2745 kg)
