1C5I-4

The four-tank 1C5I-4 trailer model has two primary set ups: two tanks for new and used oil and two tanks for new and used antifreeze for large engine oil/antifreeze exchanges or three new fluid tanks with one used tank. The open trailer design optimizes load conditions, tongue and axle weight for a safer transport to your jobsite.

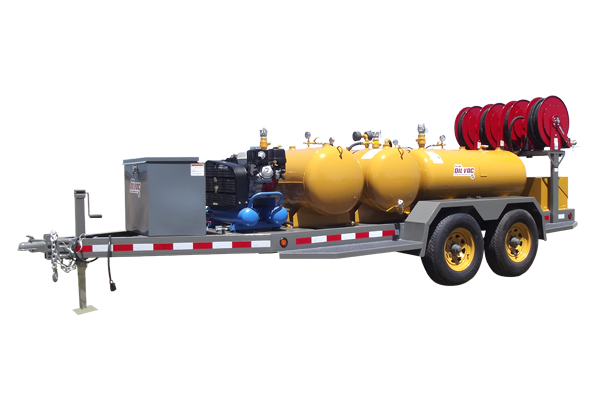

Sage Oil Vac 1C5I-4 Lube Trailer

Tanks

  • (1) 120 gallon ( 454 l )ASME tank used oil
  • (3) 120 gallon ( 454 l )ASME tank new oil

Power

  • 22 CFM vacuum/compressor driven by 8 hp electric start Honda gas engine – 125 psi max

Hoses & Reels

  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) used oil hose on spring retractable reel
  • (3) 3/4 in x 50 ft (1.905 cm x 15.2 m) fresh oil hose on spring retractable reel

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
  • Patented used Filter Receptacle
  • Patented Filter Stinger (priced separately)

Hose Ends, Meters, Handles

  • Used oil hose — 1 in (2.54 cm) cam and groove fitting
  • Fresh fluid hoses — 1⁄2 in (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately, specify quantity and type)

Frame

  • Trailer mounted
  • Tandem 5200 lb leaf spring axle with electric brakes
  • (4) 225/75R15 tires
  • Universal 2 5/16 in hitch
  • Drop leg jack
  • Dot-approved light package
  • 7 plug electric adapter

Dimensions & Weights

  • Width: 86.125 in (2.19 m)
  • Length: 234.5 in (6 m)
  • Empty weight: 4037 lb (1831 kg)
  • Normal max operating weight: 7600 lb (3447 kg)
