1E6K-7100

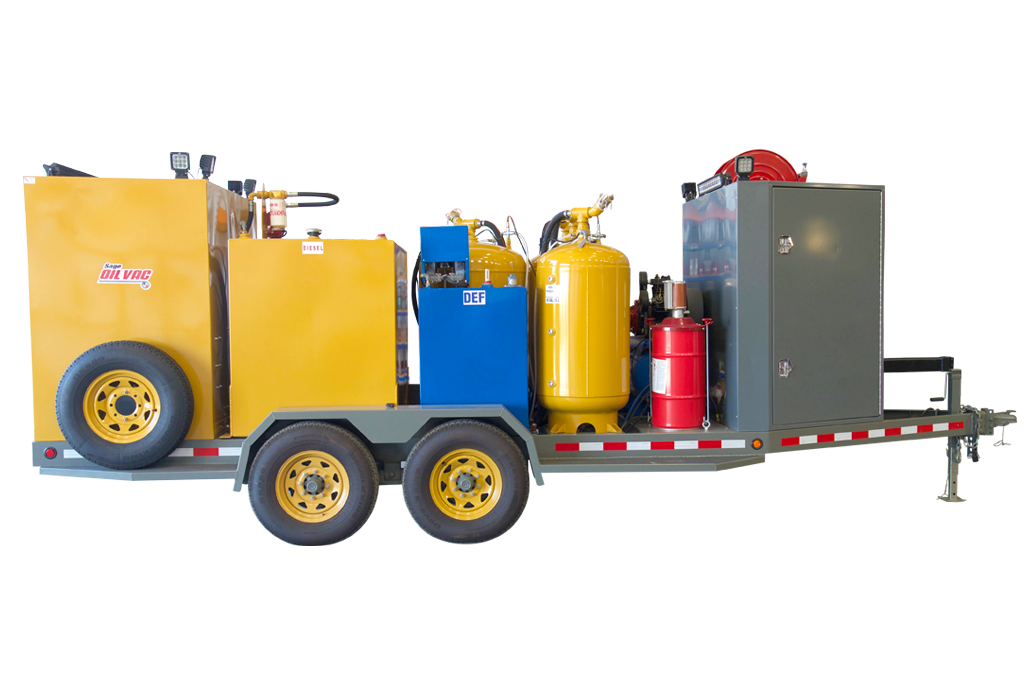

The 1E6K-7100 jobsite trailer features 320-gallon new fluid capacity accompanied by a 500-gallon diesel tank and 60G DEF Tank with a large storage area for air filters, oil filters and tools. This unit is a great alternative to a dedicated lube body. With its heavy duty frame and tandem axles, oil changes and top offs can be completed on the jobsite without worry.

TANKS

  • (1) 120 gallon (454 l) ASME tank used oil
  • (3) 80 gallon ( 302 l) ASME tank fresh oil & fluid
  • (1) 80 gallon ( 302 l) ASME EPOXY tank – fresh coolant/antifreeze
  • (1) 500 gallon ( 1892 l) Steel Diesel tank
  • (1) 60 gallon ( 227 l) Stainless Steel DEF tank
  • 120 lb grease keg holder with 50:1 Alemite piston pump

POWER

  • 24 CFM Vacuum/Compressor Driven by Electric start 13 HP Honda Engine – 125 PSI Max

HOSES & REELS

  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) used oil hose on spring retractable reel
  • (3) 3/4 in x 50 ft (1.905 cm x 15.2 m) fresh oil hose on spring retractable reel
  • (1) 5/8 in x 50 ft (1.6 cm x 15.2 m) coolant/antifreeze hose on spring retractable reel
  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) Diesel hose on spring retractable reel
  • (1) 5/8 in x 50 ft (1.6 cm x 15.2 m) DEF hose on spring retractable reel
  • (1) 3/8 in x 50 ft ( 0.9525 cm x 15.2 m) air hose on spring retractable reel
  • (1) 3/8 in x 50 ft (0.9525 cm x 15.2 m) grease hose on spring retractable reel

SAGE OIL VAC ATTRIBUTES

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately – specify quantity and length)
  • Patented Used Filter Receptacle
  • Patented Filter Stinger (Priced Separately)
  • 25 micron filters on all new oil reels
  • y-strainer on all new coolant reels

HOSE ENDS, METERS, HANDLES

  • Used oil hose – 1 in (2.54 cm) cam and groove fitting
  • Fresh fluid hoses – 1/2 in (1.27 cm) flush quick disconnects, adaptable to meters (priced separately, specify quantity and type)

FRAME

  • Trailer Mounted
  • Tandem 7000# Leaf Spring Axle with Electric Brakes
  • (4) 235/80R16 Tires
  • (1) 235/80R16 Spare Tire with Bracket
  • Universal 2 5/16 in hitch
  • Drop Leg Jack
  • Tongue Mounted Toolbox – Large Cabinet
  • DOT- Approved Light Package
  • 7 Plug Electric Adapter
  • Rear Reel Cabinet W/ Dust Proof Lockable Roll-Up Shutter Style Door

DIMENSIONS & WEIGHTS

  • Width: 98.56 in (2.50 m)
  • Length: 261.50 in (6.64 m)
  • Empty Weight: 6980 lb ( 3166 kg)
  • Normal max operating weight: 13486 lb ( 6117 kg)

ADDITIONAL

  • Raptor lined reel deck
  • Standard LED work lights at rear of cabinet
  • Interior strip lighting for reel cabinet
  • Interior strip lighting for tool cabinet
