2H40-5

With four product tanks, the  2H40-5 heritage skid provides added versatility to any jobsite maintenance task. The 2H40-5 is a more condensed version of the 2H4A-5 heritage model. The heritage skid design features built-in forklift-friendly transport and has plenty of capability for large-fleet services.

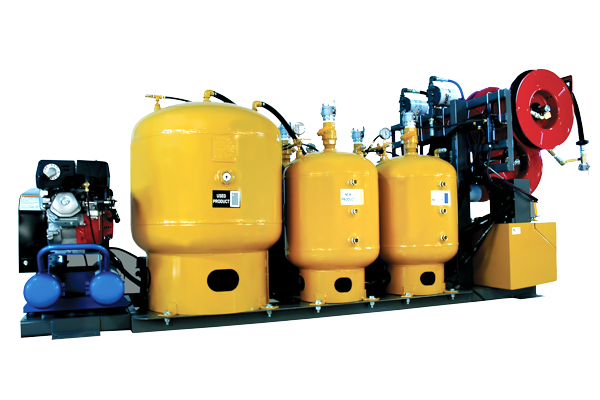

Sage Oil Vac 2H40-5 Lube Skid

Tanks

  • (1) 80 gallon ( 303 l )ASME tank used oil
  • (3) 30 gallon ( 114 l ) ASME tank fresh oil & fluid
  • (1) 30 Gallon ( 114 l ) ASME ePOXY tank – fresh coolant/antifreeze

Power

  • 22 CFM vacuum/compressor driven by 8.0 hp electric start Honda gas engine – 125 psi max

Hoses & Reels

  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) used oil hose on spring retractable reel
  • (3) 3/4 in x 50 ft (1.905 cm x 15.2 m) fresh oil hose on spring retractable reel
  • (1) 5/8 in x 50 ft (1.5875 cm x 15.2 m) fresh coolant/antifreeze hose on spring retractable reel
  • 3/8 in x 50 ft (0.9525 cm x 15.2 m) air hose on spring retractable reel
  • 1 in x 20 ft (2.54 cm x 6.1 m) used oil offload hose (priced separately)

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
  • Patented used Filter Receptacle
  • Patented Filter Stinger (priced separately)
  • 25 micron filters on all new oil reels
  • Y-Strainer on all new coolant reels

Hose Ends, Meters, Handles

  • Used oil hose — 1 in (2.54 cm) cam and groove fitting
  • Fresh fluid hoses — 1⁄2 in (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately, specify quantity and type)

Frame

  • Skid mounted
  • Table top frame design
  • Forklift-able (empty only)

Dimensions & Weights

  • Width: 49 in (1.24 m)
  • Length: 121 in (3.07 m)
  • Height: 69.5 in (1.77 m)
  • Empty weight: 2147 lb (974 kg)
  • Normal max operating weight: 3023 lb (1371 kg)
