LUBE BODIES

This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.
Email Page 55AB-6101

The 55AB-6101 lube truck body features a smaller lube configuration in comparison to others in its class. The fluid control panel makes fluid exchange easy for in-field oil changes, fluid top offs and more.

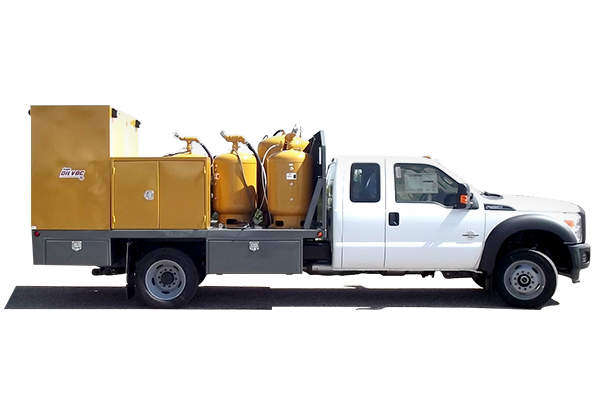

Sage Oil Vac 55AB Lube Body

Tanks

  • (1) 220 gallon ASME tank – Used Oil
  • (2) 120 gallon ASME tank – Fresh Oil & Fluids
  • (1) 80 gallon ASME tanks – Fresh Oil & Fluids
  • (1) 30 gallon ASME tanks – Used Coolant
  • (1) 30 gallon ASME EPOXY tanks – Fresh Oil & Fluids

Power

  • 18.5 CFM vacuum /compressor driven by 8.0HP electric start Honda gas engine – 125 psi max

Hoses & Reels

  • (1) 1″ x 50′ Used Oil Hose on Spring Retractable Reel
  • (1)  5/8″ x 50′ Used Oil Hose on Spring Retractable Reel – Coolant
  • (1) 1″ x 50′ Fresh Oil Hoses on Spring Retractable Reels
  • (1) 5/8″ x 50′ Fresh Oil Hose on Spring Retractable Reel – Coolant
  • (2) 3/4″ x 50′ Fresh Oil Hoses on Spring Retractable Reels
  • (1) 3/8″ x 50′ Grease Hose on Spring Retractable Reel
  • 120# Standard Package
  • (1) 1″ x 20′ Used Oil Offload Hose

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks through Barrel Straw
  • Patented Used Filter Receptacle
  • Patented Filter Stinger
  • Control Panel
  • Remote new fluid fill and fluid level gauges
  • Storage Cabinet with roll up door



Hose Ends, Meters, Handles

  • Used Oil Hose – 1″ cam and groove fitting
  • Fresh fluid hoses – 1/2″ flush face quick disconnects
  • (1) Digital handheld meter (additional meters and handles must be purchased)



Frame

  • Custom truck bed built to fit on an F550 chassis
  • (4) Under bed storage boxes



Dimensions & Weights

  • Overall Length: 148″ ( 3.75 meters)
  • Overall Width: 96″ ( 2.4 meters)
  • Overall Height: 85″ ( 2.15 meters)
  • Shipping Weight: 5376 lb ( 2438.5 kg)
  • Operational Weight: 8328 lb ( 3777.5 kg)
