LUBE BODIES

This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.
Email Page 57Ai-8100

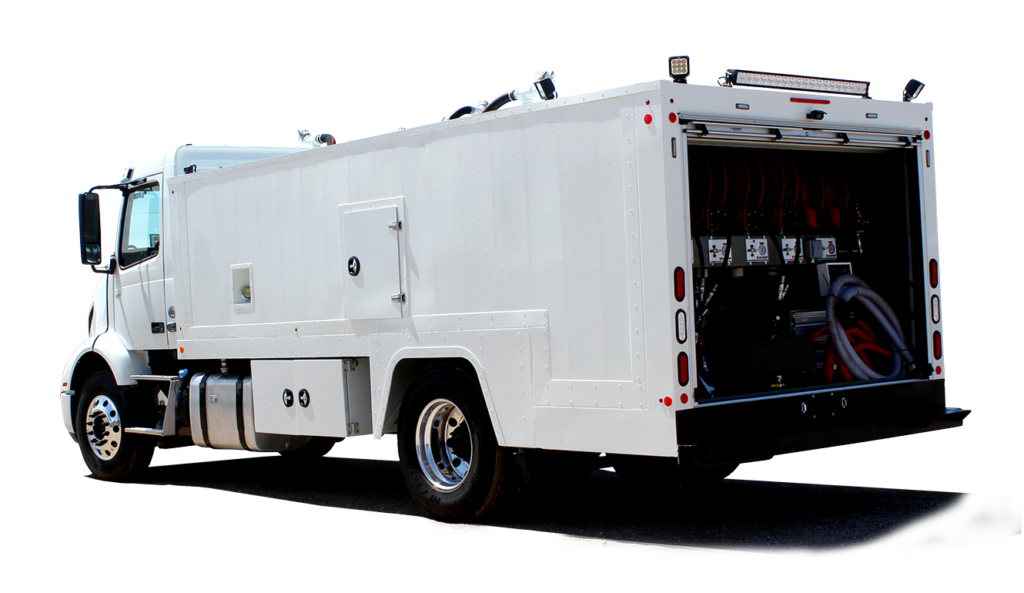

This class 7 lube truck body is great for on site PM’s with lube capacity of over 1200 gallons. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This unit features vacuum fill capabilities and fluid level LED indicators.

Tanks

  • (1) 390 Gallon ASME Tank – Used Oil
  • (1) 220 Gallon ASME Tank – Heated Fresh Oil & Fluid
  • (4) 120 Gallon ASME Tank – Heated Fresh Oil & Fluid
  • (1) 60 Gallon ASME EPOXY Tank – Fresh Coolant/Antifreeze
  • (1) 60 Gallon ASME EPOXY Tank – Used Coolant
  • (1) 20 Gallon Diesel Tank – Gravity Drain for Heater and Fuel Filter Fill
  • (1) 120# Grease Keg Holder with 50:1 Alemite Piston Pump and Heat

Power

  • Engine Driven Compressor (40 CFM at up to 150 PSI)
  • CV-30 Vacuum Generator for vacuum assist

Hoses & Reels

  • (1) 1″ x 50′ Used Oil Hose on Spring Retractable Reel
  • (5) 3/4″ x 50′ Fresh Oil Hose on Spring Retractable Reel
  • (2) 5/8″ x 50′ Fresh Coolant/Antifreeze Hose on Spring Retractable Reel
  • (1)1/2″ x 50′ Air Hose on Spring Retractable Reel
  • (1)3/8″ x 50′ Grease Hose on Spring Retractable Reel
  • 1″ x 20′ Used Oil Offload Hose (Priced Separately)

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks, (Barrel
  • Straws priced separate, specify quantity and length)
  • Patented Used Filter Receptacle
  • Patented Filter Stinger
  • 10 micron filters on all fresh oil products
  • All tank and compressor controls are remoted to Control
  • Panel Cluster at back of truck bed in cabinet for
  • offload/creating vacuumed/creating pressure.
  • Bulk fill station located on driver-side of truck
  • All tanks and control panels fitted with LED Fluid
  • Sensors.
  • Diesel fired heater used to heat all fresh fluid tanks

Hose Ends, Meters, Handles

  • Used Oil Hose 1″ cam and groove fitting
  • Fresh fluid hoses 1/2″ flush face quick disconnects
  • Meters plumbed to incoming side of all new fluid reels

Frame

  • Enclosed Drop Deck Reel Cabinet with dust proof roll up
  • shutter style door
  • Patented Used Filter Receptacle incorporated into reel
  • cabinet
  • Extruded aluminum walls that run the length of the bed
  • Manufactured bed skirts and underbed boxes where
  • available
  • Curbside step access

Dimensions and Weights

  • BODY ONLY
  • Width: 102″
  • Length: 216”
  • Empty weight: 9500 lb
  • Max Operating Weight: 17132 lb

Additional

  • (1) LED light bar (50″) at rear included in pricing
  • Additional work lights on side and front corners of bed
  • Pricing includes Bed and equipment ONLY
  • Raptor Lined Bed to reduce slick surfaces
  • Raptor Lined Under Bed Boxes
  • Under bed storage box, lockable, on curbside of
  • chassis
  • Lighting provided in all storage boxes as well as reel cabinet
  • Rear Back-Up Camera and Back-Up Alarm Included
