57CC-7100

This class 7 lube truck body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

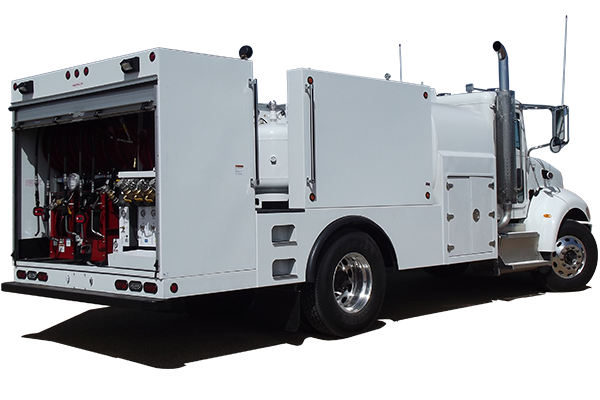

Sage Oil Vac 57CC-7 Lube Body

Tanks

  • (1) 1000 gallon ( 946 l ) trapezoidal – diesel fluid tank
  • Fitted with LED fluid sensor on momentary switch
  • Fitted with emergency shut-off
  • Manhole at top of tank with ladder access
  • Tank manufactured with attached storage boxes
  • Tank manufactured with attached side access ladder
  • (1) 120 gallon ( 454 l ) ASME tank used oil
  • (3) 80 gallon ( 303 l ) ASME fresh oil & fluid
  • (1) 60 gallon ( 227 l ) ASME EPOXY tank – fresh coolant/antifreeze
  • 100 gallon ( 379 l ) 304SS square tank – DEF • 120 lb ( 54 kg ) grease keg holder with 50:1 Alemite piston pump

Power

  • Power ex, 25 hp, 40 CFM, rotary screw compressor, 12v fuel pump, 12v cold weather kit
  • (2) CV-30 vacuum generator for vacuum assist
  • 1 in diaphragm pump for diesel pumping
  • Coupled with 10 micron dual filter filtration
  • 40 mesh in-line y-strainer installed on fuel filtration
  • 1 in (2.54 cm) poly/te on diaphragm pump for DEF

Hoses & Reels

  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) Diesel Delivery Hose on Spring Retractable Reel
  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) Used Oil Hose on Spring Retractable Reel
  • (3) 3/4 in x 50 ft (1.905 cm x 15.2 m) fresh oil hose on spring retractable reel
  • (1) 5/8 in x 50 ft (1.6 cm x 15.2 m) fresh coolant/antifreeze hose on spring retractable reel
  • 1/2 in x 50 ft (1.27 cm x 15.2 m) DEF hose on spring retractable reel
  • 1/2 in x 50 ft (1.27 cm x 15.2 m) air hose on spring retractable reel
  • 3/8 in x 50 ft (0.9525 x 15.2 m) grease hose on spring retractable reel
  • 1 in x 20 ft (2.54 cm x 6.1 m) used oil o oad hose (priced separately)

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
  • Patented used Filter Receptacle in rear reel cabinet
  • Patented Filter Stinger (priced separately)
  • 25 micron filters on all new oil reels
  • Y-strainer on all new coolant reels
  • All tank and compressor controls are remoted to control panel cluster in cabinet for offload/ ll/creating vacuum/creating pressure.
  • All tanks and control panels fitted with LED fluid sensors.

Hose Ends, Meters, Handles

  • Used oil hose — 1 in (2.54 cm) cam and groove fitting
  • Fresh fluid hoses — hard plumbed to meters (priced separately, specify quantity and type)
  • Dixon dry break cam fittings on control panel for drip free fluid transfer
  • (Male dry breaks installed on control panel cluster, female dry break w/lever activation installed on each provided barrel straw.)
  • DEF nozzle
  • In-line fuel meter for diesel
  • Diesel dispensing nozzle on diesel reel

Frame

  • Heavy duty at bed frame construction
  • Heavy duty front mounted headache rack
  • Rear reel cabinet w/ dust proof lockable roll-up shutter style door
  • Weld-on shear plate mounting for bed to chassis
  • Standard storage cabinet mounted on bed
  • Standard heavy duty bumper construction
  • Side walls running length of bed
  • Lockable swing door for grease access and transfer
  • Manufactured bed skirts
  • Curbside step access to bed with lockable access door
  • Flush mount retractable step for convenient bedentrance
  • Easy to use open wheel chock compartments on driver and passenger side – located forward of rear wheel well
  • (3) standard lockable under-bed storage boxes
  • DOT compliant lighting

Additional

  • (1) Tool drawer set mounted in passenger side front-most under-bed box
  • (1) Standard LED work light bar at rear of cabinet
  • Additional work lights on side of cabinet and sidewalls
  • Raptor lined under bed boxes
  • Raptor lined walk areas to reduce slick surfaces
  • Raptor lined reel deck
  • Raptor lined under body
  • Interior striplighting for reel cabinet
  • Interior strip lighting for all under-bed boxes
  • Eberhard 3-point whale tail t-handle twist latches on all under-bed boxes- keyed alike
  • Gas shock door retainers on all under-bed boxes
  • (1) Adjustable shelf in each box- full width of UBB/ space at back of shelf to allow adjustability (will exclude UBB box with tool drawer set depending on height of drawerwet)
  • Fully integrated electrical throughout body brought to junction box foreasy lube body chassis integration.
  • Rear back-up camera and back-up alarm integration
