This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

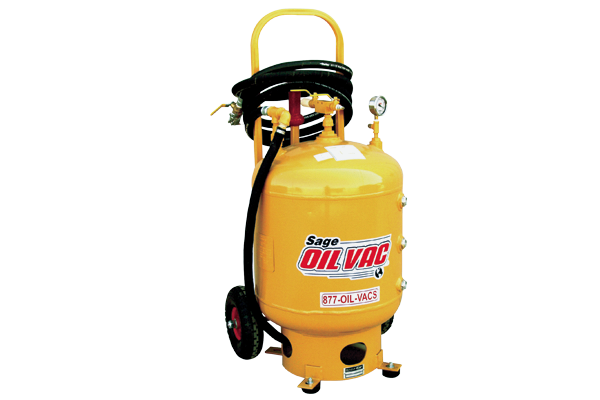

The 30U lube evacuation cart features two wheels for easy transfer of 30 gallons of used oil to the tank. Vacuum fluids directly from the pan or from equipment and the job is done; its ready to transport safely and cleanly.
Tanks
- (1) 30 gal. ( 114 l ) ASME tank used fluid
Power
- Vacuum generator (requires additional air source)
Hoses and Reels
- (1) 3/4 in. x 15 ft. (1.905 cm x 4.5 m) used fluid hose
Sage Oil Vac Attributes
- Patented filter stinger (priced separately)
Hose Ends, Meters, Handles
- Used oil hose – 3/4 in. (1.91 cm) cam and groove fitting
Frame
- Mounted on (2) wheel dolly
Dimensions & Weights
- Width: 27 in. (.68 m)
- Length: 26 in (.66 m)
- Empty weight: 377 lb. (1710 kg)
- Normal max operating weight: 379 lb. (172 kg)
