LUBE BODIES

60U LUBE CART

Email Page
This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

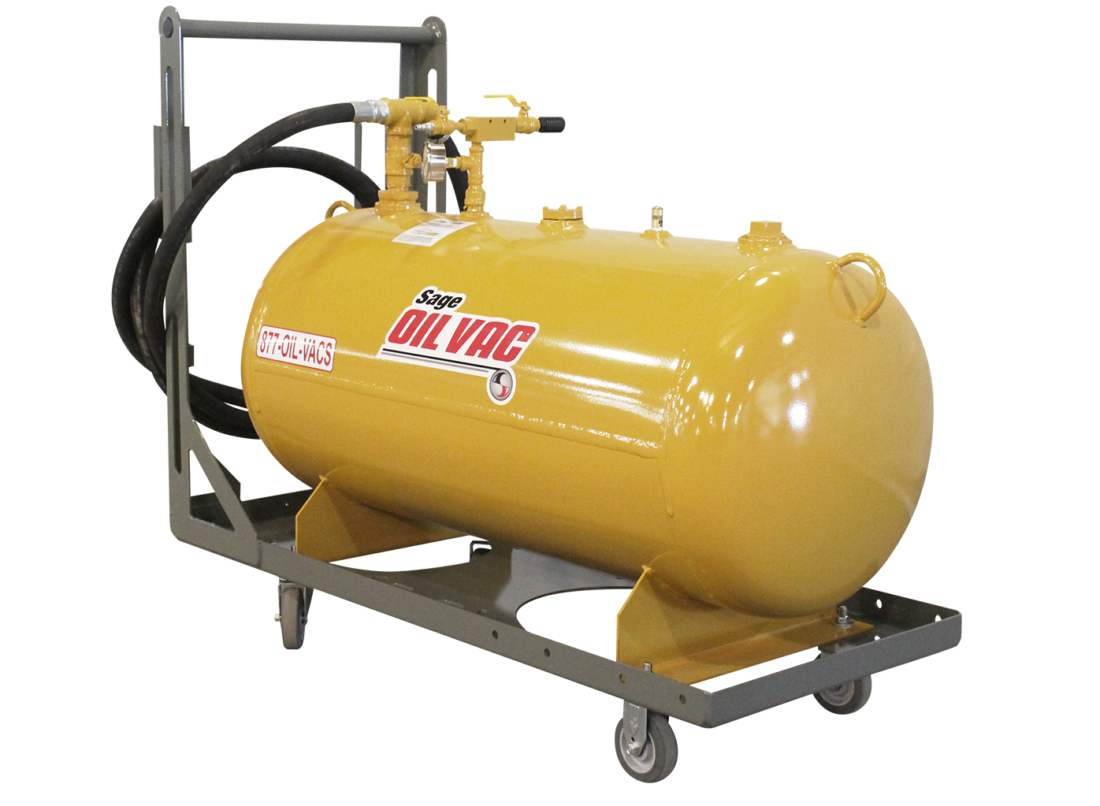

The 60U lube evacuation cart boasts four wheels, two swivel casters and a 60-gallon capacity for simple used fluid vacuuming. The additional 10-gallon drain pan mounted on the top of the cart will also come in handy during fluid exchange — just drain, vacuum from the pan and add fresh fluid.

Sage Oil Vac 3014-1 Lube Skid

Tanks

  • (1) 60 gal. ( 227 L) ASME tank used fluid

Power

  • Additional air source required
  • CV-20 vacuum generator for vacuum assist

Hoses and Reels

  • (1) 1 in. x 15 ft. (2.54 cm x 4.5 m) used fluid hose
  • Integrated offload hose

Sage Oil Vac Attributes

  • Patented vacuum process to load fluid tanks
  • Patented filter stinger (priced separately)

Hose Ends, Meters, Handles

  • Used oil hose — 1 in. (2.54 cm) cam and groove fitting

Frame

  • Mounted on (4) wheel dolly
  • Fork pockets included onto frame

Dimensions and Weights

  • Width: 28 in. (.71 m)
  • Length: 56.6875 in. (1.44 m)
  • Empty weight: 280 lb. (127 kg)
  • Normal max operating weight: 720 lb. (325 kg)
