This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

The 230 lube exchange cart is the complete oil change cart. Hook compressed air to the cart and you are ready to vacuum oil from the engine or a fresh oil tank for filling the engine. This cart also features a used filter receptacle to dispose messy oil filters in.

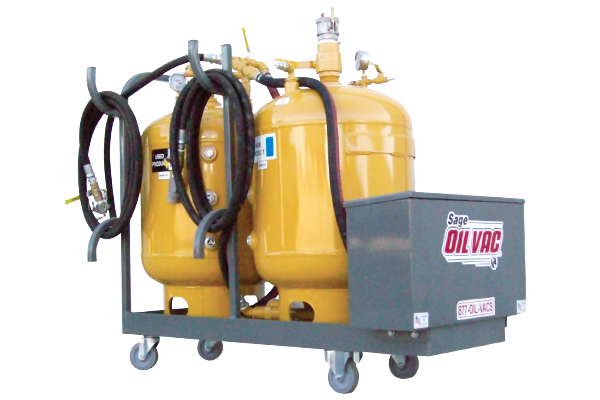

Sage Oil Vac 3014-2 Lube Cart

Tanks

  • (1) 30 gal. (114 L) ASME tank used fluid
  • (1) 30 gal. (114 L) ASME tank fresh oil & fluid

Power

  • Additional air source required
  • CV-20 vacuum generator for vacuum assist

Hoses and Reels

  • (2) 3/4 in. x 15 ft. (1.905 cm x 4.5 m) new/used fluid hose
  • Integrated offload hose

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (barrel straws priced separate, specify quantity and length)
  • Patented used filter receptacle
  • Patented filter stinger (priced separately)
  • Filter on new oil tank

Hose Ends, Meters, Handles

  • Used oil hose — 3/4 in. (1.905 cm) cam and groove fitting
  • Fresh fluid hoses -1/2 in. (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately, specify quantity and type)

Frame

  • Mounted on (4) wheel wagon cart
  • Fork pockets included onto frame

Dimensions and Weights

  • Width: 22.1875 in. (.56 m)
  • Length: 61.25 in. (1.6 m)
  • Empty weight: 365 lb. (166 kg)
  • Normal max operating weight: 587 lb. (266 kg)
