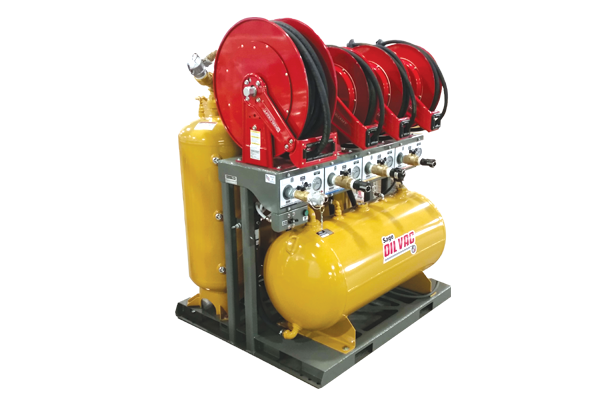

50-ft. reels come standard in every compact skid model.

Minimum 10 CFM air at 70 psi to operate with three configurations available:

Tanks

• (1) 60 gallon ( 227 l )ASME tank – used oil
• (3) 30 gallon (114 l ) ASME tank – fresh oil & fluid

Power

• Additional air source required
• Vacuum generator for vacuum assist

Hoses & Reels

• (1) 1 in x 50 ft (2.54 cm x 15.2 m) used oil hose on spring retractable reel
• (3) 5/8 in x 50 ft (1.6 cm x 15.2 m) fresh oil hose on spring retractable reel
• 1 in x 20 ft (2.54 cm x 6.1 m) used oil offload hose (priced separately)

Sage Oil Vac Attributes

• Patented vacuum process to load fresh fluid tanks through the control panel at the rear of the skid (Barrel Straws priced separately – specify quantity and length)
• Patented Filter Stinger (priced separately)
• 25 micron filters on all new oil reels
• Y-Strainer on all new coolant reels
• All tanks and control panels fitted with LED fluid sensors.
• All tank controls are remoted to control panel cluster for offload/fill/creating vacuum/creating pressure.

Hose Ends, Meters, Handles

• Used oil hose – 1 in (2.54 cm) cam and groove fitting
• Fresh fluid hoses – 1⁄2 in (1.27 cm) flush face quick disconnects, adaptable to meters (Priced separately, specify quantity and type)

Frame

• Skid mounted
• Table top frame design
• Forklift-able (empty only)

Dimensions & Weights

• Width: 50 in (1.27m)
• Length: 43.5625 in (1.10 m)
• Height: 63.875 in (1.62 m)
• Empty weight: approx. 980 lb (444.5 kg)
• Normal max operating weight: approx. 1,637 lb (742.5 kg )
