This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

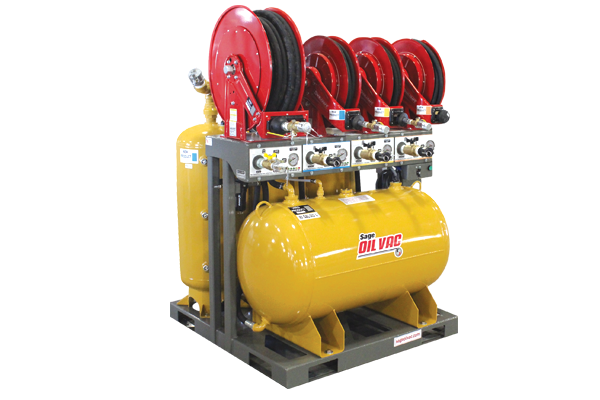

Email Page 2S44-4101

50-ft. reels come standard in every compact skid model.

Minimum 10 CFM air at 70 psi to operate with two configurations available.

Tanks

• (1) 80 gallon ( 303 l )ASME tank used oil
• (3) 30 gallon (114 l ) ASME tank fresh oil & fluid

Power

• Vacuum generator assembly for vacuum assist
• Additional air source required

Hoses & Reels

• 1 in x 50 ft (2.54 cm x 15.2 m) used oil hose on spring retractable reel
• 5/8 x 50 ft (1.6 cm x 15.2 m) fresh oil hose on spring retractable reel
• 1 in x 20 ft (2.54 cm x 6.1 m) used oil offload hose (priced separately)

Sage Oil Vac Attributes

• Patented vacuum process to load fresh fluid tanks through the control panel at the rear of the skid (Barrel Straws priced separately — specify quantity and length)
• Patented Filter Stinger (priced separately)
• 25 micron filters on all new oil reels
• Tanks fitted with LED fluid sensors at control panels
• All tank controls are remoted to control panel cluster for offload, fill, creating vacuum and creating pressure.

Hose Ends, Meters, Handles

• Used oil hose — 1 in (2.54 cm) cam and groove fitting
• Fresh fluid hoses — 1⁄2 in (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately — specify quantity and length)

Frame

• Skid mounted
• Table top frame design
• Forklift-able (empty only)

Dimensions & Weights

• Width: 49 in (1.24 m)
• Length: 48.38 in (1.23 m)
• Height: 70.5 in (1.79 m)
• Empty weight: 1214 lb (550.7 kg)
• Normal max operating weight: 1889 lb (856.8 kg)
