2H48-5410

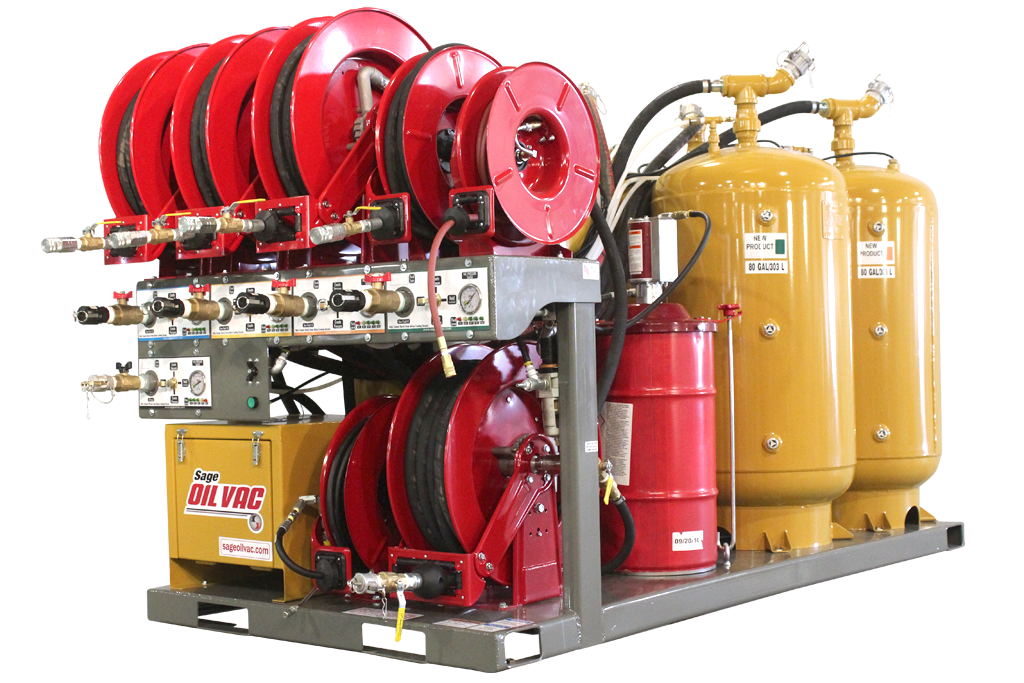

The STANDARD Model 2H48-5410 Lube Skid is the “Little Brother” of the 2H49-5100. This Heritage skid is the perfect lube equipment for trucks. This professional lube equipment unit has the second largest fluid capacity in the Heritage family; it can hold a total of 240 gallons of oil in four separate product tanks. The Heritage skid design features built-in forklift-friendly transport and has plenty of capabiltiy for large fleet services.
TANKS
- (1) 120 Gallon ASME Tank – Used Oil
- (3) 60 Gallon ASME Tank – Fresh Oil & Fluid
- (1) 60 Gallon ASME EPOXY Tank – Fresh Coolant/Antifreeze
- 120# Grease Package
POWER
- Additional Air Source Required
- Vacuum Generator for Vacuum Assist
HOSES & REELS
- (1) 1″ x 50′ Used Oil Hose on Spring Retractable Reel
- (3) 3/4″ x 50′ Fresh Oil Hose on Spring Retractable Reel
- (1) 5/8″ x 50′ Fresh Coolant/Antifreeze Hose on Spring Retractable Reel
- (1) 3/8″ x 50′ Grease Hose on Spring Retractable Reel
- 1″ x 20′ Used Oil Offload Hose (Priced Separately)
SAGE OIL VAC ATTRIBUTES
- Patented Vacuum Process to Load Fresh Fluid Tanks, (Barrel Straws Priced Separate, Specify Quantity and Length)
- Patented Used Filter Receptacle
- Patented Filter Stinger (Priced Separately)
- 10 Micron Filters on All New Oil Reels
- Y-Strainer on All New Coolant Reels
HOSE ENDS, METERS, HANDLES
- Used Oil Hose – 1″ Cam and Groove Fitting
- Fresh fluid hoses – 1/2″ Flush Face Quick Disconnects, Adaptable to
- Meters (Priced Separately, Specify Quantity and Type)
FRAME
- Skid Mounted
- Table Top Frame Design
- Forklift-Able (Empty Only)
DIMENSIONS AND WEIGHTS
- Width: 50″ (172cm)
- Length: 105 5/8″ (268.29cm)
- Empty Weight: 2,272 lb
- Max Operating Weight: 4,500 lb
