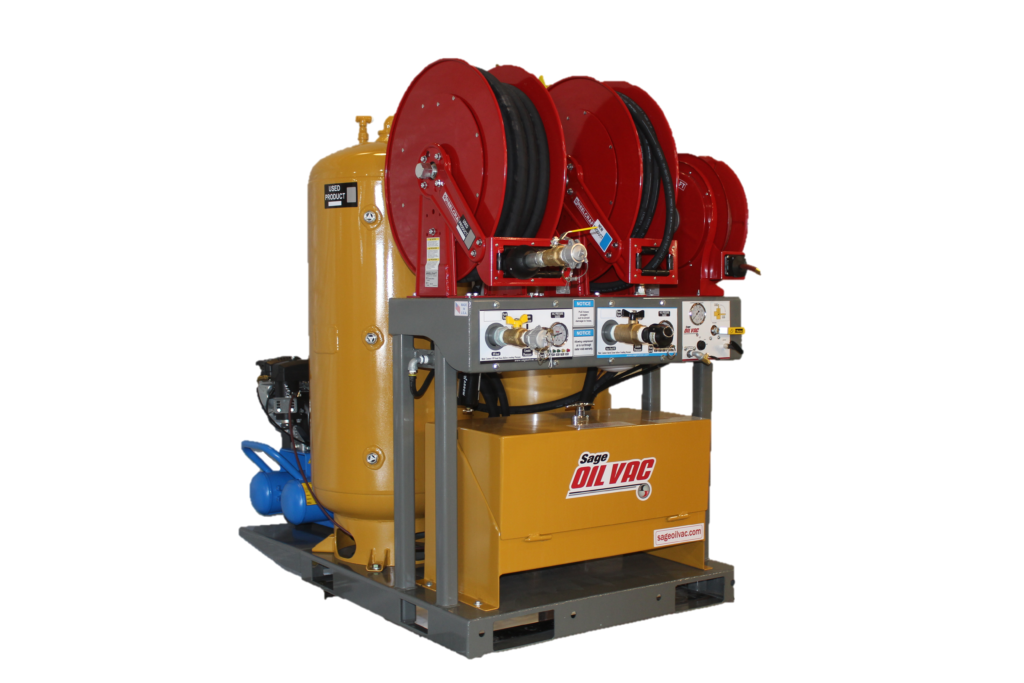

260 HERITAGE LUBE SKID

Key Features:

(1) 60-gal (227.13-L) used oil tank
(1) 60-gal (227.13-L) fresh oil & fluid tank
12-cfm vacuum/compressor driven by 6-hp Kohler engine

Description

This skid has 120 gallons of capacity in a very small footprint for areas where space is at a premium, while still retaining all of the Sage Oil Vac attributes such as the Used Filter Receptacle™ (UFR), centralized control panels and 50-foot reels. The vertical tank design is what gives it the small footprint. This is a favorite for work trucks with mechanics bodies.

Request a Quote

Specifications

TANKS

(1) 60-gal (227.13-L) used oil tank
(1) 60-gal (227.13-L) fresh oil and fluid tank

POWER

12-cfm vacuum/compressor driven by 6-hp Kohler engine

HOSES & REELS

(1) 1-in x 50-ft (2.54-cm x 15.2-m) used oil hose on spring retractable reel
(1) 3/4-in x 50-ft (1.91-cm x 15.2-m) fresh oil hose on spring retractable reel
(1) 3/8-in x 50-ft (0.95-cm x 15.2-m) air hose on spring retractable reel

SAGE OIL VAC ATTRIBUTES

Patented vacuum process to load fresh fluid tanks (barrel straws priced separately — specify quantity and length)
Patented Used Filter Receptacle™ (UFR)
Patented Filter Stinger™ (priced separately)
10-micron filters on all new oil reels
All tanks and control panels fitted with LED fluid sensors (included in unit price)

HOSE ENDS, METERS, HANDLES

Used oil hose — 1-in (2.54-cm) cam and groove fitting
Fresh fluid hoses — 1/2-in (1.27-cm) flush face quick disconnects, adaptable to meters (priced separately — specify quantity and hype)

FRAME
