230 SERVICE LUBE SKID

Email Page
This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

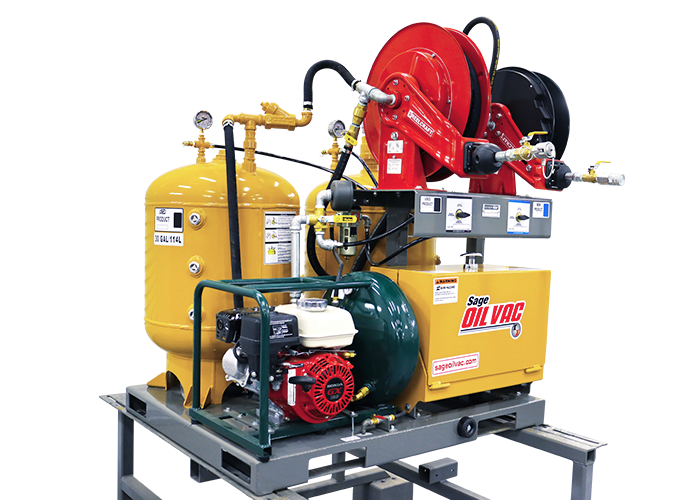

The 230 service lube skid is a great unit to get started in onsite oil changes. This skid was designed to fit in the back of a pickup or a UTV — it’s completely self-contained and ready to go.

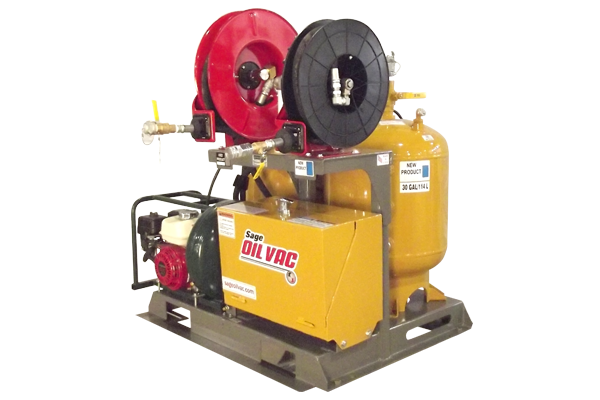

Sage Oil Vac 2M32-2 Lube Skid

Tanks

  • (1) 30 gal. (114 l ) ASME tank used oil
  • (1) 30 gal. ( 114 l ) ASME tank fresh oil & fluid

Power

  • 8 CFM vacuum/compressor driven by 4 hp gas engine

Hoses and Reels

  • (1) 3/4 in. x 25 ft. (1.905 cm x 7.6 m) used oil hose on spring retractable reel
  • (1) 5/8 in. x 25 ft. (1.5875 cm x 7.6 m) fresh oil hose on spring retractable reel

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks
  • Patented used filter receptacle
  • 25 micron filters on all new oil reels

Hose Ends, Meters, Handles

  • Used oil hose — 3⁄4 in. (1.905 cm) cam and groove fitting
  • Fresh fluid hoses — 1⁄2 in. (1.27 cm) flush face quick disconnects

Frame

  • Skid mounted
  • Table top frame design

Dimensions and Weights

  • Width: 44.875 in. (1.14 m)
  • Length: 33.38 in. ( 0.85 m)
  • Height: 47.8125 in. (1.21 m)
  • Empty weight: 614 lb. (278.5 kg)
  • Normal max operating weight: 835 lb. (378.8 kg)
