230V SERVICE LUBE SKID

Email Page
This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

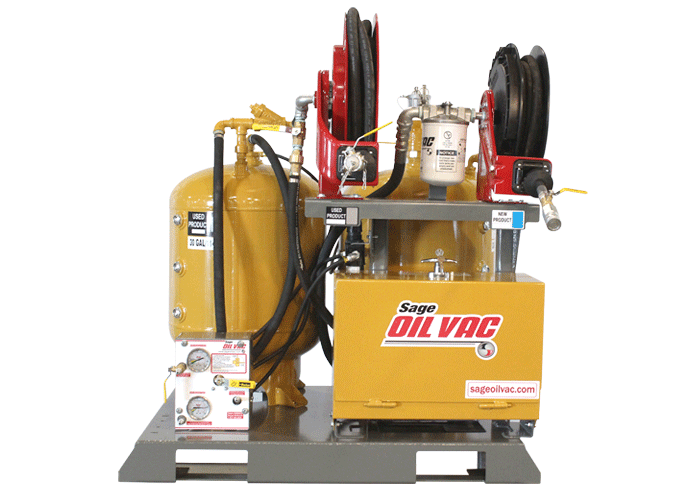

The 230V Service Lube Skid is a great unit to get started in onsite oil changes if you already have an existing compressor.  This skid was designed to fit in the back of a pickup or a UTV.

TANKS

  • (1) 30 gallon (113.56 L) tank used oil
  • (1) 30 gallon (113.56 L) tank fresh oil & fluid

POWER

  • Additional air source required
  • Vacuum generator for vacuum assist

HOSES AND REELS

  • (1) 3/4 in x 25 ft (1.905 cm x 7.6 m) used oil hose on spring retractable reel
  • (1) 5/8 in x 25 ft (1.5875 cm x 7.6 m) fresh oil hose on spring retractable reel

SAGE OIL VAC ATTRIBUTES

  • Patented vacuum process to load fresh fluid tanks
  • Patented used Filter Receptacle
  • 10 micron filters on all new oil reels

HOSE ENDS, METERS, HANDLES

  • Used oil hose – 3/4 in (1.905 cm) cam and groove fitting
  • Fresh fluid hoses – 1/2 in (1.27 cm) flush face quick disconnects

FRAME

  • Skid mounted
  • Table top frame design

DIMENSIONS AND WEIGHTS

  • Width: 44.875 in (1.14 m)
  • Length: 33.38 in (0.85 m)
  • Height: 47.8125 in (1.21 m)
  • Empty Weight: 607 lb (278.5 kg)
  • Normal max operating weight: 829 lb (378.8 kg)
