Key Features:

  • (1) 60-gal (227.13-L) used oil tank
  • (1) 60-gal (227.13-L) fresh oil & fluid tank
  • 12-cfm vacuum/compressor driven by 6-hp Kohler engine

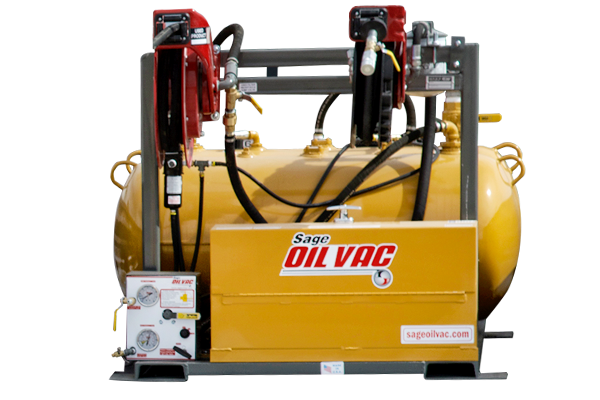

The 260 Service Lube Skid provides great value to the jobsite. This two-tank system is typically used for basic oil changes and service when only one type of new oil is needed. Each tank holds up to 60 gallons.


  • (1) 60-gal (227.13-L) used oil tank
  • (1) 60-gal (227.13-L) fresh oil and fluid tank
  • 12-cfm vacuum/compressor driven by 6-hp Kohler engine
Hoses and Reels
  • (1) 3/4-in x 25-ft (1.91-cm x 7.6-m) used oil hose on spring retractable reel
  • (2) 5/8-in x 25-ft (1.59-cm x 7.6-m) fresh oil hose on composite spring retractable reel
  • 3/8-in x 25-ft (0.95-cm x 7.6-m) air hose (priced separately)
  • Integrated used oil offload
Sage Oil Vac Attributes
  • Patented vacuum process to load fresh fluid tanks (barrel straws priced separately — specify quantity and length)
  • Patented Used Filter Receptacle™ (UFR)
  • Patented Filter Stinger™ (priced separately)
  • 10-micron filters on all new oil reels
Hose Ends, Meters, Handles
  • Used oil hose — 3/4-in (1.91-cm) cam and groove fitting
  • Fresh fluid hoses — 1/2-in (1.27-cm) flush face quick disconnects, adaptable to meters (priced separately — specify quantity and type)
  • Skid mounted
  • Table top frame design
  • Forklift-able (empty only)
Dimensions and Weights
  • Width: 49 in (1.24 m)
  • Length: 75.125 in (1.91 m)
  • Height: 43.5 in (1.10 m)
  • Empty weight: 925 lb (420 kg)
  • Normal max operating weight: 1,363 lb (618 kg)
