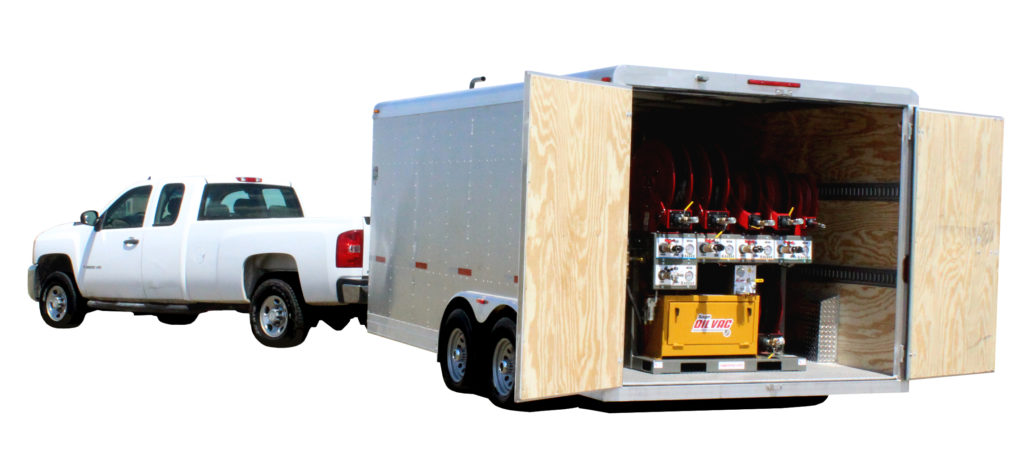

The STANDARD Model 7C7F-5105 Bumper Pull Enclosed Trailer wtih Heated Lube Skid. This unit features three fresh product tanks, one fresh coolant tank, Reel Cabinet and valuable storage space.



  • (1) 120 Gallon ASME Tank – Used Oil
  • (3) 60 Gallon ASME Tank – Fresh Oil & Fluid with Heat
  • (1) 60 Gallon ASME EPOXY Tank – Fresh Coolant/Antifreeze



  • Compressor package, 8HP honda engine, 12V electric start, 18.5 CFM @ 135 MAX PSI, belt driven, single stage lubricated pump, 8 gallon air tank, Length: 42 in. Width: 20 in. Height: 30 in. Weight: 315 lb (Mounted Separate from the skid with the exhaust routed out the top of the trailer)


  • Thermo Pro 90
  • Up to 9.1 KW heating power
  • Diesel Fired 12/ 24v, with Enclosure
  • 6,100 to 31,000 BTU



  • (1) 1″ x 50′ Used Oil Hose on Spring Retractable Reel
  • (3) 3/4″ x 50′ Fresh Oil Hose on Spring Retractable Reel
  • (1) 5/8″ x 50′ Fresh Coolant/Antifreeze Hose on Spring Retractable Reel
  • (1) 3/8″ x 50′ Air Hose on Spring Retractable Reel
  • 120# Grease Package


  • 1″ x 20′ Used Oil Offload Hose (Priced Separately)



  • Patented Pressure/ Vacuum Process to On-Load and Off-Load Fluid.
  • Fill product tanks on top of the tank or at the rear of the skid on the control panel.
  • (Barrel Straws Priced Separate, Specify Quantity and Length)
  • Patented Used Filter Receptacle for storing used filters and containing any used oil that may come for the used filters.
  • Patented Filter Stinger (Priced Separately)
  • Filtration: Spin on 10 Micron Filters on All New Oil Reels
  • Control Panels:  located at the rear of the skid and are used to measure and create pressure or vacuum in product tanks as well as read fluid level with LED light sensors



  • Used Oil Hose – 1″ Cam and Groove Fitting
  • Fresh fluid hoses – 1/2″ Flush Face Quick Disconnects, Adaptable to
  • Meters (Priced Separately, Specify Quantity and Type)



  • Skid Mounted
  • Table top design using 3/16″ formed steel plate with 3/16″ steel formed crossmembers
  • Forklift-Able (Empty Only)


  • Width: 102 in. ( 2.6 m)
  • Length: 234 in. ( 5.9 m)
  • Height: 78 in. (  1.8 m)
  • Empty Weight: 5,162 lb. (2,341.4 kg)
  • Max Operating Weight 7,028 lb. (3,187.8 kg)


  • (All dimensions and weights are within or – 1-2 %)


  • Exterior Dimensions: 8′ x 16′
  • Body: Tandem 5,200 lb axles, 16 ga. steel walls and 20 ga. steel roof, double swing doors at the rear of the trailer, curb side access door, solvent based automotive grade undercoating
  • Flooring: Heavy duty 3/4″ marine grade plywood flooring topped with black rubber mat
  • Jack Type: 2,000 lb top wind with wheel
  • Hitch: 2 5/16″
