LUBE BODIES

3250 PM TRAILER

Email Page
This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

The STANDARD Model 3250 Bumper Pull Lube Trailer is one of Sage Oil Vac’s most popular models.  Its tandem-axle design works well in oil and gas service and off-road use.  With two fresh product tanks and one used oil tank, this trailer works great for oil changes and antifreeze top-offs.  The open trailer design also optimizes load conditions, tongue weight and axle weight for a safer transport to your jobsite.

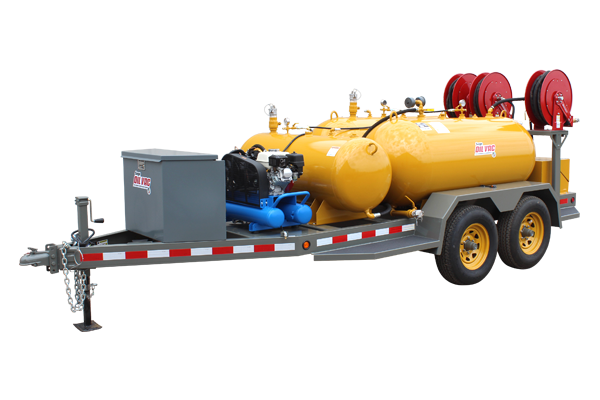

Sage Oil Vac 1C5H-3 Lube Trailer

TANKS

  • (1) 250 gallon (946.353 L) tank used oil
  • (1) 250 gallon (946.353 L) tank fresh oil & fluid
  • (1) 120 gallon (454.25 L) fresh oil & fluid

POWER

  • 22 CFM vacuum/compressor driven by 8.0 hp electric start Honda gas engine -125 PSI max

HOSES AND REELS

  • (1) 1 in x 50 ft (2.54 cm x 15.2 m) used oil hose on spring retractable reel
  • (2) 3/4 in x 50 ft (1.905 cm x 15.2 m) fresh oil hose on spring retractable reel
  • 3/8 in x 50 ft (0.9525 cm x 15.2 m)spring retractable air hose reel
  • 1 1/2 in x 20 ft (3.81 cm x 6.096 m) used oil offload hose (priced separately)



SAGE OIL VAC ATTRIBUTES

  • Patented vacuum process to load fresh fluid tanks
  • Patented used Filter Receptacle
  • 10 micron filters on all new oil reels



HOSE ENDS, METERS, HANDLES

  • Used oil hose – 1 in (2.54 cm) cam and groove fitting
  • Fresh fluid hoses – 1/2 in (1.27 cm) flush face quick disconnects

FRAME

  • Trailer mounted
  • Tandem 5,200 lb leaf spring axle with electric brakes
  • (4) 225/75R15 tires
  • Universal 2 5/16 in hitch
  • Drop leg jack
  • Tongue-mounted toolbox (43 in W x 16 in D x 24 in H)
  • DOT-approved light package
  • 7 plug electric adapter



DIMENSIONS AND WEIGHTS

  • Width:  86.125 in (2.1875 m)
  • Length: 221.0625 in (5.615 m)
  • Empty weight: 3,595 lb (1,630.665 kg)
  • Max operating weight: 8,283 lb (3,757.106 kg)
