This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.
Tanks
- (1) 80 gal. ASME tank used oil
- (1) 60 gal. ASME tank fresh oil & fluid
- (1) 80 gal. ASME tank fresh oil & fluid
Power
- 12 CFM vacuum/compressor driven by 6 hp Kohler engine
Hoses and Reels
- (1) 1 in. x 50 ft. used oil hose on spring retractable reel
- (2) 3/4 in. x 50 ft. fresh oil hose on spring retractable reel
- (1) 3/8 in. x 50 ft. air hose on spring retractable reel
- 1 in. x 20 ft. used oil offload hose (priced separately)
- (Optional) 3/8 in. x 50 ft. grease hose on spring retractable reel (priced separately)
Sage Oil Vac Attributes
- Patented vacuum process to load fresh fluid tanks
- (Barrel straws priced separate, specify quantity and length)
- Patented used filter receptacle
- Patented filter stinger (priced separately)
- 10 micron filters on all new oil reels
Hose Ends, Meters, Handles
- Used oil hose – 1 in. cam and groove fitting
- Fresh fluid hoses – 1/2 in. flush face quick disconnects, adaptable to meters (priced separately, specify quantity and type

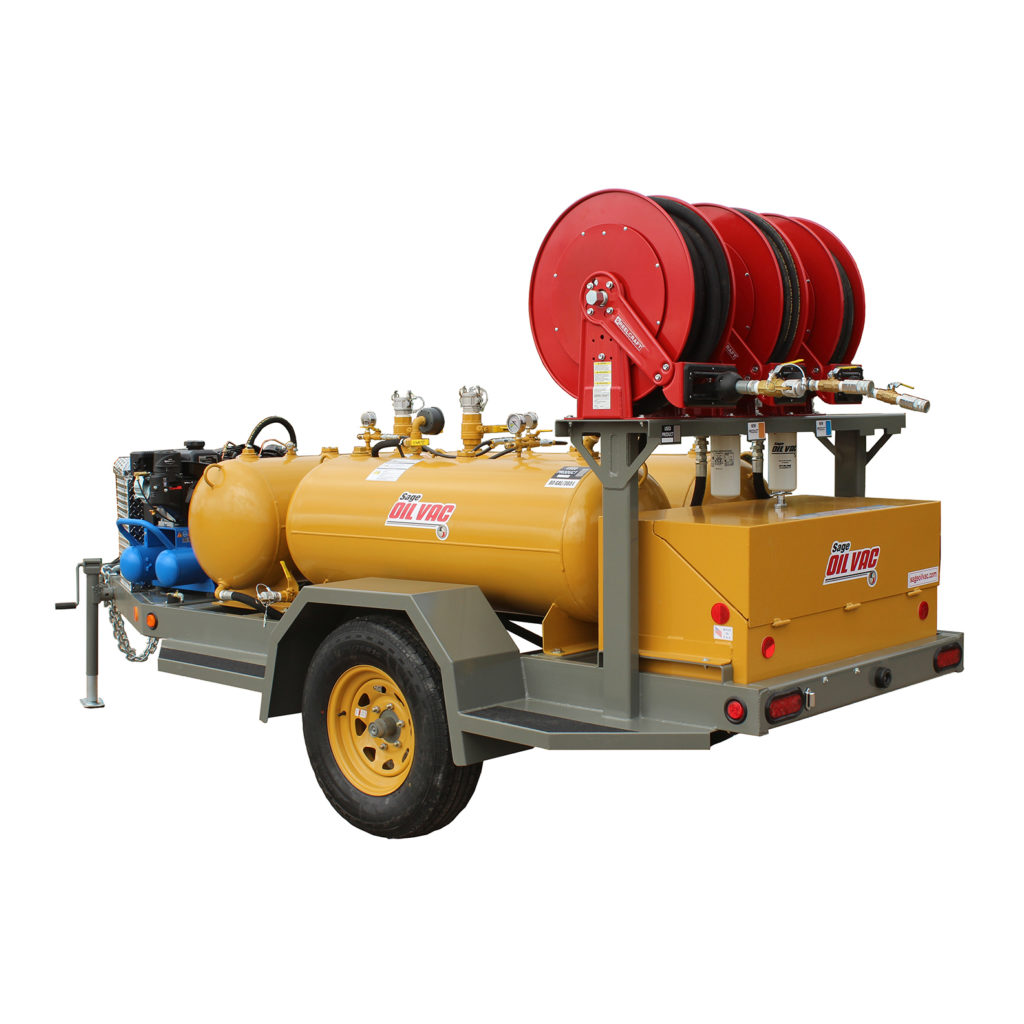

Frame
- Trailer mounted
- Single 3500# rubber torsion axle
- (2) 225/75R15 tires
- Universal 2 5/16 in. hitch
- Swivel leg jack
- Tongue-mounted toolbox (34 in. W x 14 in. D x 23 in. H)
- DOT-approved light package
- 4 plug electric adapter
Dimension and Weights
- Width: 71 in. (1.80m)
- Length: 175 1/4 in. (4.45m)
- Empty weight: 1980 lb. (898.11 kg)
- Max operating weight: 3302 lb. (1498.21 kg)
