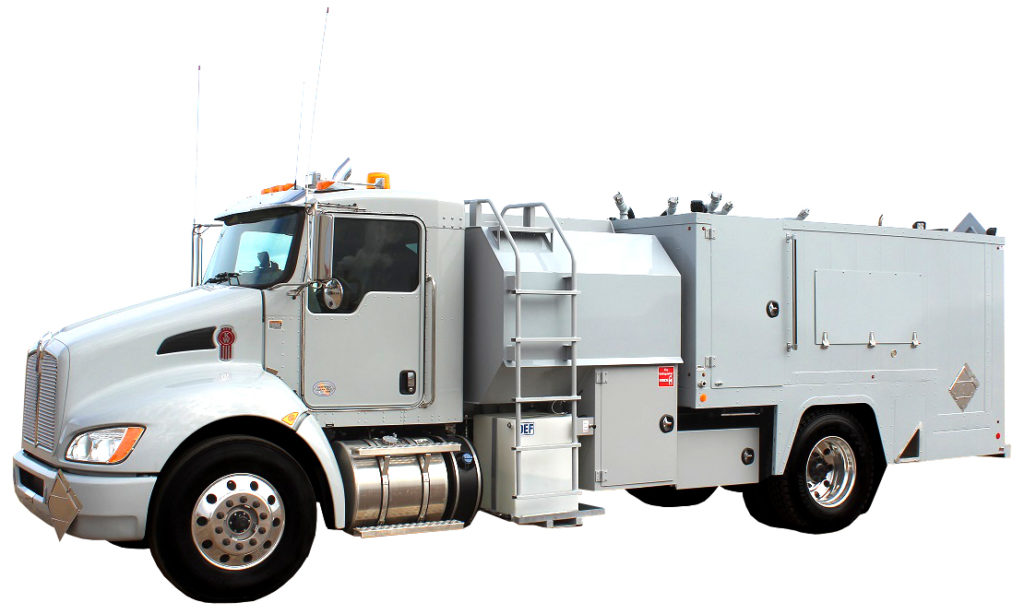

7120S FUEL/LUBE BODY

Key Features:

(1) 1,000-gal (3,785.41-L) rounded fuel tank
(5) Product tanks
(1) 60-gal (227.13-L) stainless steel DEF tank
Standalone diesel-driven rotary screw compressor (40 cfm at up to 150 psi)

Description

This Class 7 standard model 7120S Fuel/Lube Truck Bed chassis has 1,000 gallons (3,785.41 L) of fuel capacity, 120 gallons (454.25 L) of used oil capacity and 300 gallons (1,135.62 L) of fresh oil capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes improved vacuum performance, redesigned storage for improved operator experience, individual control panels for ease of use in the reel cabinet, continuous LED fluid level monitors and a bulk fill station with a tank fill indicator light for fast, accurate fill of oil and coolant.

Request a Quote

Availability: 2

Specifications

Tanks

(1) Redesigned 1,000-gal (3,785.41-L) rounded fuel tank
(1) 120-gal (454.25-L) used oil/waste oil tank
(1) 120-gal (454.25-L) fresh oil and fluid tank
(3) 60-gal (227.13-L) fresh oil and fluid tanks
(1) 60-gal (227.13-L) fresh coolant/antifreeze tank
(1) 60-gal (227.13-L) stainless steel DEF tank
(1) 120-lb (54-kg) grease keg holder with 50:1 Alemite piston pump

New enhancements

Finish fluid changes faster with improved vacuum performance. The new multistage vacuum generator is faster than the previous model.
See the amount of fluid left in the tank with guide wave fluid level sensors and display. Updates include options for alarms for low fluid levels or overfilled fluid.
Move caustic fluid around without pumps. The DEF tank incorporates the exclusive pump-free Sage Oil Vac pressure and vacuum system.
Take advantage of smart updates on the redesigned 1,000-gallon (3,785.41-L) diesel tank, like a 12-inch (30.48-cm) shorter tank with better structure, rounded corners, 3/16 inch (.47 cm) and an extra 7 cubic feet (.2 m³) of storage.
Make getting around easier with a shorter overall wheelbase. The 187-inch (474.98-cm) wheelbase is 12 inches (30.48 cm) shorter than previous models.
Protect your equipment with improved sealing system on storage boxes and better waterproof sealing system on switch boxes.
See the advantages of increased durability with screen-printed/engraved panels.
Get easier access to tools, a cleaner truck and more capacity with a relocated and upsized mechanics drawer set in the storage box.
Eliminate drain pan mess with a dedicated storage spot.
Navigate the jobsite better with LH/RH backup camera views with wider range than the previous model.
Get easier access to the truck bed with a new safety ladder.
Always know what’s in your tank with a fill indicator light at the bulk-fill location.
Work safer with an extended bumper, 6 inches (15.24 cm) longer for a sturdier step and work area.
Choose add-ons like:
- Safety cone storage.
- Vise mounting on bumper.
- Backup sensors.

Power

Standalone diesel-driven rotary screw compressor (40 cfm at up to 150 psi) and hydraulic system (13 gpm and up to 3,000 psi)
CV-30 vacuum generator for vacuum assist
Blackmer TX 1.5 pump for diesel fuel delivery
Coupled with dual filter filtration
Pumpless DEF tank

Hoses and Reels

(1) 1-in x 50-ft (2.54-cm x 15.2-m) diesel delivery hose on spring retractable reel
(1) 1-in x 50-ft (2.54-cm x 15.2-m) used oil hose on spring retractable reel
(3) 3/4-in x 50-ft (1.91-cm x 15.2-m) fresh oil hoses on spring retractable reel
(1) 5/8-in x 50-ft (1.59-cm x 15.2-m) fresh oil hose on spring retractable reel
(1) 5/8-in x 50-ft (1.59-cm x 15.2-m) fresh coolant/antifreeze hose on spring retractable reel
(1) 5/8-in x 50-ft (1.59-cm x 15.2-m) DEF hose on spring retractable reel
(1) 1/2-in x 50-ft (1.27-cm x 15.2-m) air hose on spring retractable reel
(1) 3/8-in x 50-ft (0.95-cm x 15.2-m) grease hose on spring retractable reel
1-in x 20-ft (2.54-cm x 7.6-m) used oil offload hose (priced separately)

Sage Oil Vac Attributes

Exclusive vacuum process to load fresh fluid tanks (barrel straws priced separate — specify quantity and length)
Patented Used Filter Receptacle™ (UFR)
Patented Filter Stinger™
10-micron filters on all fresh oil products
All tank and compressor controls are remoted to the truck’s reel cabinet
Curbside bulk fill station for rapid filling of new product to tanks
All tanks are fitted with a float and pressure gauge that is displayed on the remote panel, informing the user of vacuum/pressure levels captured in the tank, as well as the fluid level

Hose Ends, Meters, Handles

(1) Used oil hose 1-in (2.54-cm) cam and groove fitting
Fresh fluid hoses 1/2-in (1.27-cm) flush face quick disconnects
(1) In-line fuel meter for diesel
(1) Diesel dispensing nozzle on diesel reels
(1) DEF dispensing nozzle on DEF reels
Meters plumbed to delivery side of all new fluid reels

Frame

Enclosed drop deck reel cabinet with dust-proof roll-up shutter style door
Cabinet to catch all liquid drained from the used filters and evacuates the fluid to the used product tank
- Receptacle also serves as a meter tray
Enclosed toolboxes along the length of the bed where available
Manufactured bed skirts and underbed boxes where available
Driver-side access with slide out ladder

Dimensions and weights

Width: 101 in (2.56 m)
Length: 27.3 ft (8.32 m)
- Length is calculated from the bumper of chassis to bumper of body. Slight variations may occur by chassis make and model.
Empty weight with chassis: approx. 21,960 lb (9,960.89 kg)
Max operating weight: approx. 32,500 lb (14,741.75 kg)
