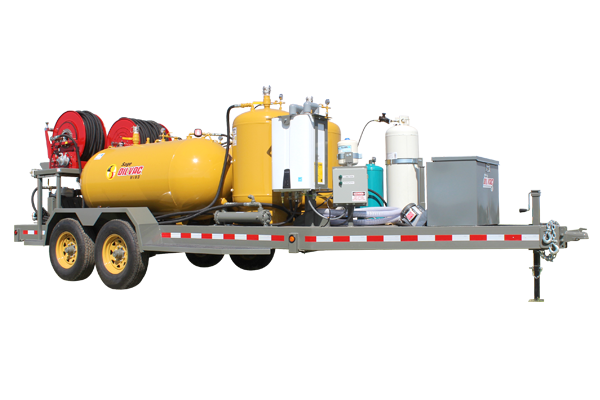

The 1E6M-4102 unit is the most popular GOEX system in our wind solutions line. This unit includes four tanks: one for used product, one for final-fill oil and the remaining two are rinse and flush tanks.

Tanks

• (1) 390 gallon ( 946 l )ASME tank used oil
• (1) 390 gallon ( 946 l ) ASME tank fresh oil & fluid
• (1) 120 gallon ( 454 l ) ASME tank – flush oil
• (1) 120 gallon ( 454 l ) ASME tank – rinse oil

Power

• 22 CFM vacuum/compressor driven by 8 hp electric start Honda gas engine – 125 psi max
• 1000 psi, 8 gpm fluid pumps driven by 5.5 hp Honda engine

Hoses & Reels

• (1) 1 in x 330 ft (2.54 cm x 100.5 m) used oil hose on spring retractable reel
• (1) 3/4 in x 330 ft (1.905 cm x 100.5 m) fresh oil hose on spring retractable reel fresh and used oil hoses paired on single air rewind reel
• 3/4 in x 330 ft (1.905 cm x 100.5 m) flush & rinse oil hose – mounted on air rewind reel

Sage Oil Vac Attributes

• Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
• 1 GPM filtration unit – filters fresh oil to 3 microns
• Fluid heat system- shell and tube heat exchangers
• Propane fired tank-less hot water heater
• Up-tower meter, magnet, and 5 micron filter assembly
• Up-tower used oil assist pump, 1hp, 110 vac, 15 amp
• Rinse and flush oil tank use same reel and pump

Hose Ends, Meters, Handles

• Used oil hose — 1 in (2.54 cm) cam and groove fitting
• Fresh fluid hoses — hard plumbed to meters
• (2) digital in-line 1000 psi fluid meters

Frame

• Trailer mounted
• Tandem 7000 lb leaf spring axle with electric brakes
• (4) ST235/80R16, 16 in tires
• Universal 2 5/16 in hitch
• Drop leg jack
• Tongue-mounted toolbox (24 in W x 16 in D x 43 in H)
• Dot-approved light package
• 7 plug electric adapter
• Secondary containment system 430 gallon ( 1628 l ) minimum capacity, drain capability at both ends of containment

Dimensions & Weights

• Width: 100.5 in (2.55 m)
• Length: 286.3125 in (7.27 m)
• Empty weight: 7737 lb (3509 kg)
• Normal max operating weight: 14000 lb (6350 kg)
