This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

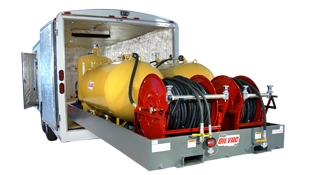

The 7H8N-4100 GOEX unit has all the features of the 1E6M-4102 open style trailer only in an enclosed cargo trailer.  This trailer is insulated and heated — it’s perfect for cold weather climates and performing oil changes in less-than-ideal conditions.  Like the 1E6M-4102, this unit includes four tanks: one for used product, one for final-fill oil and the remaining two are rinse and flush tanks.

sage-oil-vac-7h8n-4-flush-rinse-unit-edit

Tanks

  • (1) 390 gallon (1,476.31 L) tank used oil
  • (1) 390 gallon (1,476.31 L)tank fresh oil & fluid
  • (1) 120 gallon (454.25 L) tank – flush oil
  • (1) 120 gallon (454.256 L) tank – rinse oil

Power

  • 22 CFM vacuum/compressor driven by 8 hp electric start Honda gas engine – 125 psi max
  • 1,000 psi 6 GPM fluid pumps driven by 5.5 hp honda engine

Hoses & Reels

  • (1) 1 in x 330 ft (2.54 cm x 100.5 m) used oil hose on hand rewind reel
  • (1) 3/4 in x 330 ft (1.905 cm x 100.5 m) fresh oil hose on hand rewind reel fresh and used oil hoses paired on single hand rewind reel
  • 3/4 in x 330 ft (1.905 cm x 100.5 m) flush & rinse oil hose – mounted on hand rewind reel
  • (optional) air rewind reel upgrade (priced separately)

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
  • 1 GPM filtration unit – filters fresh oil to 3 microns
  • Fluid heat system – shell and tube heat exchangers
  • Propane-fired tankless hot water heater
  • Up-tower meter, magnet, and 5 micron filter assembly
  • Up-tower used oil assist pump, 1 hp, 110 vac, 15 amp
  • Rinse and flush oil tank use same reel and pump
  • (optional) dual Y2K 4 micron flush/rinse filter system (priced separately)

Hose Ends, Meters, Handles

  • Used oil hose — 1 in (2.54 cm) cam and groove fitting
  • Fresh fluid hoses — hard plumbed to meters
  • (2) digital inline 1,000 psi fluid meters

Frame

  • Skid mounted in insulated enclosed trailer
  • Tandem 7,000 lb spring leaf axle with electric brakes
  • Universal 2 5/16 in hitch
  • Dot-approved light package
  • 7 plug electric adapter
  • Escape door on passenger side
  • Spare tire included
  • Adjustable hitch
  • Skid installed onto rubber mat
  • Double back doors
  • Secondary containment system 430 gallon (1628 L) minimum capacity, drain capability at both ends of containment

Dimensions & Weights

  • Width: 100 in (2.54 m)
  • Length: 358 in (9 m)
  • Empty weight: 13,395 lb (6,076 kg)
  • Normal max operating weight: 17,118 lb (7,765 kg)
