LUBE BODIES

8180 Fuel/Lube Body

Email Page
This class 7 lube body chassis has a 1,000-gallon fuel and lube capacity available in a variety of tank combinations. All oil tanks utilize the Sage Oil Vac exclusive pressure and vacuum system. This body includes a slide out used filter receptacle, stowable 17-gallon drain pan and a fluid control panel to monitor fluid levels, bulk vacuum filling and fluid control.

Custom Model

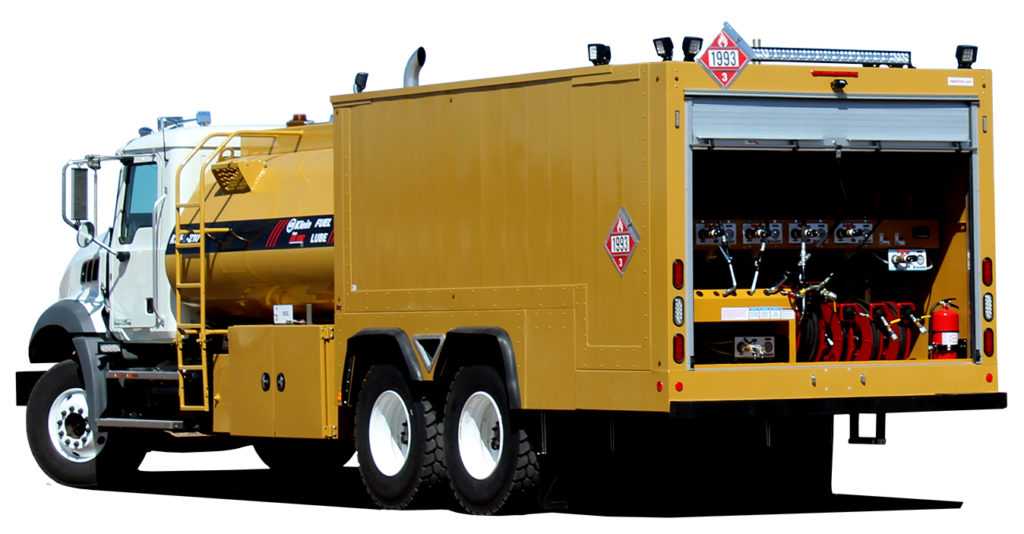

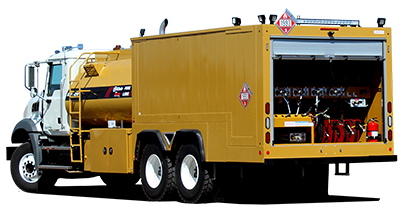

8180 Fuel/Lube Open Truck Bed

Tanks

  • (1) 2000 gal., trapezoid fuel tank
  • (1) 180 gal. ASME tank – used oil
  • (5) 120 gal. ASME tank – fresh oil & fluid
  • (1) 60 gal. ASME EPOXY tank – fresh coolant/antifreeze

Hoses and Reels

  • (1) 1 1/2 in. x 50 ft.  diesel delivery hose on spring retractable reel
  • (1) 1 in. x 100 ft.  diesel delivery hose on spring retractable reel
  • (1) 1 in. x 50 ft. used oil hose on spring retractable reel
  • (5) 3/4 in. x 50 ft. fresh oil hose on spring retractable reel
  • (2) 5/8 in. x 50 ft. fresh coolant/antifreeze hose on spring retractable reel
  • (1) 5/8 in. x 50 ft. pressure washer hose on spring retractable reel
  • (1)1/2 in. x 50 ft. air hose on spring retractable reel
  • 1 in. x 20 ft. used oil offload hose (priced separately)

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (barrel straws priced separate, specify quantity and length)
  • Patented used filter receptacle
  • Patented filter stinger
  • 25 micron filters on all fresh oil products
  • All tank and compressor controls are remoted to control panel cluster at back of truck bed in cabinet for offload/fill/creating vacuumed/creating pressure
  • All tanks and control panels fitted with LED Fluid Sensors
  • Dry break cam fittings on control panel for drip free fluid transfer

Hose Ends, Meters, Handles

  • Used oil hose 1 in. cam and groove fitting
  • Fresh fluid hoses 1/2 in. flush face quick disconnects
  • (2) In-line fuel meter for diesel
  • (2) Diesel dispensing nozzle on diesel reels
  • Meters plumbed to incoming side of all new fluid reels

Frame

  • Enclosed drop deck reel cabinet with dust proof roll up shutter style door
  • Patented used filter receptacle incorporated into reel cabinet
  • Side walls that run the length of the bed
  • Manufactured bed skirts and underbed boxes where available
  • Curbside step access
  • Dimensions & Weights

Additional

  • (1) LED light bar (50 in.) at rear included in pricing
  • Additional work lights on side and front of bed
  • Pricing includes bed and equipment ONLY
  • Raptor lined bed to reduce slick surfaces
  • Raptor lined under bed boxes
  • Outside work lights and cabinet lights
  • Under bed storage box, lockable, on curb side of chassis
  • All storage box lighting as well as reel cabinet lighting
  • Rear back-up camera and back-up alarm included
