1B5C-2100

The 1B5C-2100 trailer is easily towed by a half-ton pickup (or larger) with its single-axle . You might call this trailer the “big brother” to the 1A models with its 120-gallon capacity. The open trailer design also optimizes load conditions, tongue and axle weight for a safer transport.

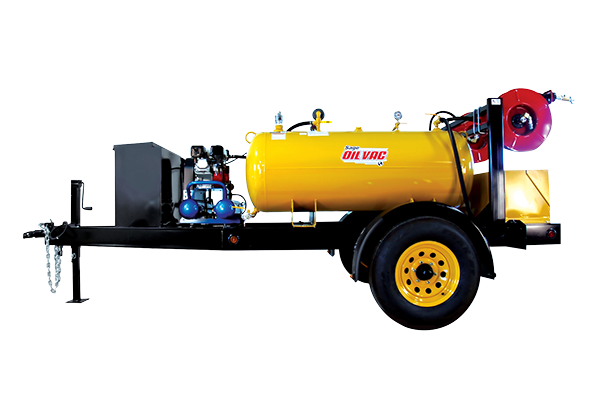

Sage Oil Vac 1B5C-2 Lube Trailer

Tanks

  • (1) 120 gallon ( 454 l )ASME tank used oil
  • (1) 120 gallon (454 l ) ASME tank fresh oil & fluid
  • (optional) 120 lb (54 kg ) grease keg holder with 50:1 Alemite piston Pump (priced separately)

Power

  • 12.5 CFM vacuum/compressor driven by 5.5 hp Honda gas engine – 125 psi max

Hoses & Reels

  • (1) 3/4 in x 25 ft (1.905 cm x 7.6 m) used oil hose on spring retractable reel
  • (1) 3/4 in x 25 ft (1.905 cm x 7.6 m) fresh oil hose on spring retractable reel
  • 3/8 in x 25 ft (0.9525 cm x 7.6 m) air hose on spring retractable reel (priced separately)
  • 1 in x 20 ft (2.54 cm x 6.1 m) used oil offload hose (priced separately)

Sage Oil Vac Attributes

  • Patented vacuum process to load fresh fluid tanks (Barrel Straws priced separately — specify quantity and length)
  • Patented used Filter Receptacle
  • Patented Filter Stinger (priced separately)
  • 25 micron filters on all new oil reels

Hose Ends, Meters, Handles

  • Used oil hose — 3/4 in (1.905 cm) cam and groove fitting
  • Fresh fluid hoses — 1⁄2 in (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately, specify quantity and type)

Frame

  • Trailer mounted
  • Single 5200 lb leaf spring axle with electric brakes
  • (2) 225/75R15 tires
  • Universal 2 5/16 in hitch
  • Drop leg jack
  • Tongue-mounted toolbox (43 in W x 16 in D x 24 in H)
  • Dot-approved light package
  • 7 plug electric adapter

Dimensions & Weights

  • Width: 83.46 in (2.12 m)
  • Length: 168.1 in (4.27 m)
  • Empty weight: 2165 lb (982 kg)
  • Normal max operating weight: 3041 lb (1379 kg)
