2M37-4

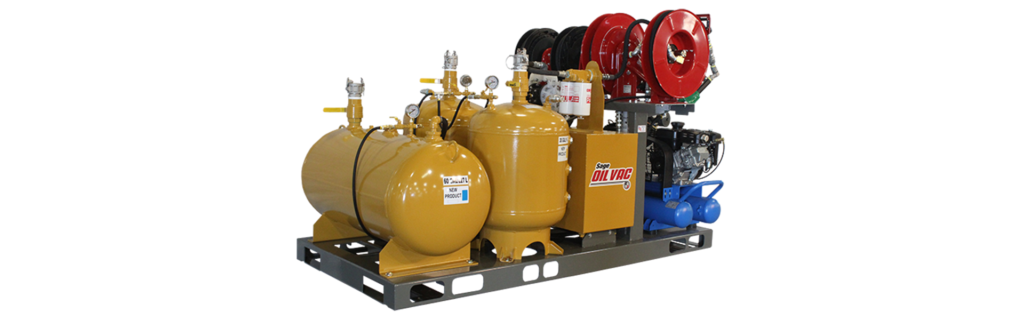

The 2M37-4106 Fuel and Lube Skid is a skid combination that’s perfect for a jobsite that has one or two pieces of equipment or smaller horsepower items. It provides the perfect flexibility when a large fuel and lube truck is not feasible. Operators can easily fuel and topoff equipment just like with a dedicated lube truck, but in a compact skid package complete with forklift pockets and mounting holes for easy transport.



TANKS

  • (1) 60 gallon (227 l) ASME tank used oil
  • (2) 30 gallon (114 l) ASME tank fresh oil & fluid
  • (1) 100 gallon (379 l) Steel square tank for Diesel

POWER

  • 13 CFM Vacuum/Compressor Driven by 6 HP Robin Engine – 125 PSI Max
  • **Can Purchase without Compressor**

HOSES & REELS

  • (1) 3/4 in x 25 ft (1.905 cm x 63.5 cm) used oil hose on spring retractable reel
  • (1) 3/4 in x 25 ft (1.905 cm x 63.5 cm) Diesel hose on spring retractable reel
  • (2) 5/8 in x 25 ft (0.9525 cm x 63.5 cm) fresh oil hose on composite spring retractable reel

SAGE OIL VAC ATTRIBUTES

  • Patented vacuum process to load fresh fluid tanks, (Barrel Straws priced separately – specify quantity and length)
  • Patented used filter receptacle
  • Patented Filter Stinger (priced separately)
  • 25 micron filters on all new oil reels
  • 14 gallon per minute diesel pump

HOSE ENDS, METERS, HANDLES

  • Used oil hose – 3/4 in (1.905 cm) cam and groove fitting
  • Diesel Hose – 3/4 in (1.905 cm) in line meter, with 1 in diesel nozzle
  • Fresh fluid hoses – 1/2 in (1.27 cm) flush face quick disconnects, adaptable to meters (priced separately – specify quantity and type)

FRAME

  • Skid mounted
  • Table top frame design
  • Forklift- able (Empty only)

DIMENSIONS AND WEIGHTS

  • Width: 42 in (1.07 m)
  • Length: 85.375 in ( 2.17 m)
  • Height: 52.375 in (1.33 m)
  • Empty weight: 1350 lb (612 kg)
  • Max Operating Weight: 2950 lb (1338 kg)
